VBMGuyana
Civil & Infrastructure Drilling

Construction Drill Bits for Guyana

Volga Burmash construction bits cover the civil-engineering ground beneath Guyana's growth — horizontal directional drilling for utilities and pipeline crossings, water wells for coastal towns and hinterland communities, foundation and piling work, and reverse-circulation exploration. Four product lines run from 95.3 mm pilot bores up to modular bit sections assembled to 1500 mm, sized for Georgetown's construction boom and the coastal infrastructure that protects it.

95.3 mm–1500 mm HDD · RC · Piling Mixed Geology
Catalog

Product Lines

Four construction-specific Volga Burmash families, each matched to a drilling method and a formation profile — from steerable HDD bits to bolt-on bit sections for large-diameter piling.

TCNP

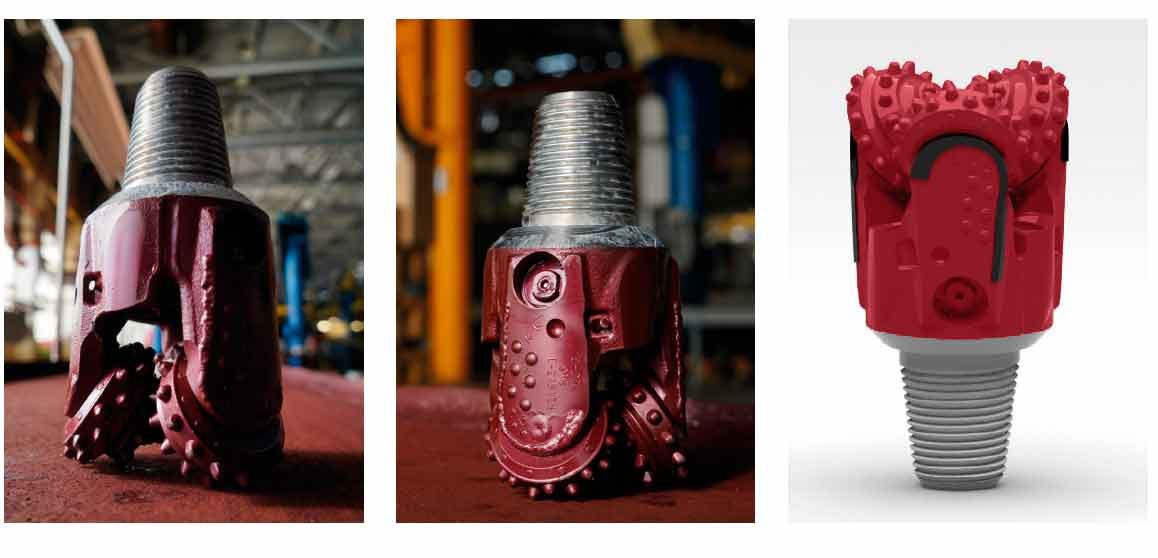

TechnoPro (TCNP)

Steerable bits built for horizontal directional drilling. The asymmetric cutting face and integrated steering geometry give precise directional control when pulling underground utilities, pipelines and cable ducts beneath roads, drainage canals and rivers. TechnoPro runs on standard HDD mud-motor connections and leaves a clean, gauge-true bore that pulls product back smoothly.

  • Diameter range: 95.3 mm (3¾") to 311.2 mm (12¼")
  • Connection: API Regular and HDD-specific threads
  • Cutting structure: PDC cutters and carbide inserts
  • Formations: Clay, sand, gravel, soft rock
  • Application: Utility installation, pipeline crossings, cable conduit
WD

WaterDrill (WD)

Roller-cone and PDC bits tuned for water-well construction. WaterDrill suits the methods used across Guyana — mud rotary, air rotary and direct-push — and handles the layered ground a water well passes through, from young alluvial deposits and weathered sediment down into fractured basement aquifers. Sealed and open-bearing options let you balance bit life against cost on shallower community wells.

  • Diameter range: 152.4 mm (6") to 444.5 mm (17½")
  • Types: Roller-cone and PDC configurations
  • Bearing: Sealed and open-bearing options
  • Formations: Alluvial, sedimentary, fractured rock
  • Application: Community, agricultural and industrial water wells
RCB

ReverseCirculationBit (RCB)

Bits built for reverse-circulation drilling, where cuttings return up the centre of the string for clean sampling or controlled disposal. A face-discharge design pushes fluid and cuttings into a central inner tube, keeping samples uncontaminated. RCB is the tool for exploration programmes that need representative chip samples and for large-diameter holes where fast, reliable cuttings removal matters most.

  • Diameter range: 127.0 mm (5") to 311.2 mm (12¼")
  • Flow path: Face discharge through centre tube
  • Cutting structure: Carbide inserts and PDC cutters
  • Formations: Soft to medium-hard rock
  • Application: RC exploration, grade-control drilling
SECTIONS

Bit Sections (to 1500 mm)

Modular roller-cone assemblies for large-diameter foundation work. Individual sections bolt onto a carrier plate or mandrel to make up a composite cutting tool, so a single rig can build holes up to 1500 mm in diameter. Worn sections are swapped one at a time instead of replacing the whole bit — a practical advantage for piling, caisson and shaft work where downtime is costly.

  • Section sizes: Various roller-cone module sizes
  • Assembled diameter: Up to 1500 mm (59")
  • Mounting: Bolt-on to carrier plate or mandrel
  • Bearing: Sealed journal bearing per section
  • Application: Foundation piling, caissons, shaft sinking
In the Field

Construction Drilling in Guyana

Guyana's coastal plain and its hard interior demand very different bits. Here is where each construction line earns its keep.

HDDUtility & pipeline crossings

Most of Guyana's people and services sit on the narrow coastal strip around Georgetown, where streets, drainage canals and the Demerara, Berbice and Essequibo rivers all block open-cut trenching. TechnoPro bits drill steered bores beneath them to pull water mains, power conduit and fibre — installing new utilities and river crossings without tearing up roads or disturbing sea defences.

WaterCoastal & hinterland wells

Clean water supply reaches from coastal towns to remote hinterland and Amerindian communities. WaterDrill bits work the full column a Guyana well passes through — soft coastal clays and alluvium near the coast, then weathered sediment and fractured basement rock inland — supporting community, agricultural and small industrial supply wells.

PilingFoundations on soft ground

Georgetown's high-rise and infrastructure boom is built on soft, waterlogged coastal clays that need deep bored piles to reach competent bearing. Modular bit sections build the large-diameter holes those foundations require — for hotels, commercial towers, bridges and the bound-to-grow port and road network — with sections replaced individually to keep rigs turning.

RCExploration & grade control

In the hinterland gold belt, reverse-circulation drilling delivers fast, clean chip samples for exploration and grade control. RCB bits hold penetration rate while returning representative cuttings, giving geologists reliable subsurface data to plan pits, plants and access ahead of mining.

Reference

Construction Bit Selection Guide

A starting point for matching application to product line and method. Send us your ground conditions and hole size and we will confirm the right configuration.

ApplicationDiameterProduct LineMethod
Utility & cable conduit bores95.3–200 mmTechnoPro (TCNP)Horizontal directional drilling
Pipeline & river crossings200–311.2 mmTechnoPro (TCNP)Horizontal directional drilling
Community & agricultural water wells152.4–311.2 mmWaterDrill (WD)Mud / air rotary
Deep / large-bore water wells311.2–444.5 mmWaterDrill (WD)Mud rotary
Exploration & grade-control holes127.0–311.2 mmReverseCirculationBit (RCB)Reverse circulation
Foundation & piling, caissonsup to 1500 mmBit SectionsLarge-diameter rotary

Drilling Guyana's Coastal & Interior Ground

Guyana drills two very different grounds. The coastal plain where most construction happens is young, soft and wet — alluvial clays and silts laid down behind a sea wall, much of it below high-tide level. That ground is easy to penetrate but hard to keep stable, so it rewards bits that cut cleanly and hold gauge: TechnoPro for steered HDD bores beneath streets and canals, WaterDrill for the shallow-to-medium wells that tap coastal and near-surface aquifers, and modular bit sections for the deep bored piles that carry Georgetown's new towers down to firmer bearing.

Move inland and the geology hardens fast. Beneath the weathered cover lies the Precambrian basement of the Guiana Shield — the abrasive greenstone and granite that hosts the country's gold. Reverse-circulation bits suit this interior, returning clean chip samples at a good rate for exploration and grade control, while air-rotary water wells reach fractured-rock aquifers for hinterland communities. Choosing between a soft-formation cutting structure and one built for hard, abrasive rock is the single biggest decision on most Guyana jobs.

Whichever ground you are on, the right answer usually starts with the IADC code and the formation, not the brand on the bit. See our guide on how to choose a drill bit by IADC code, or compare ranges with our tricone bits and mining bits for harder interior work.

Request a Quote

Let's spec the right bit for your project.

Tell us your hole size, formation and target depth. As the authorized Volga Burmash distributor in Guyana, we'll match a tricone, PDC or mining bit and respond with availability and pricing.
